×ASCONBuilt on ASCON's own geometric kernel, KOMPAS-3D runs enterprise projects with thousands of sub-assemblies — from a first sketch to a machined part.
ASCON developed KOMPAS-3D to handle enterprise mechanical projects with thousands of sub-assemblies, parts and standardized objects — without slowing down.

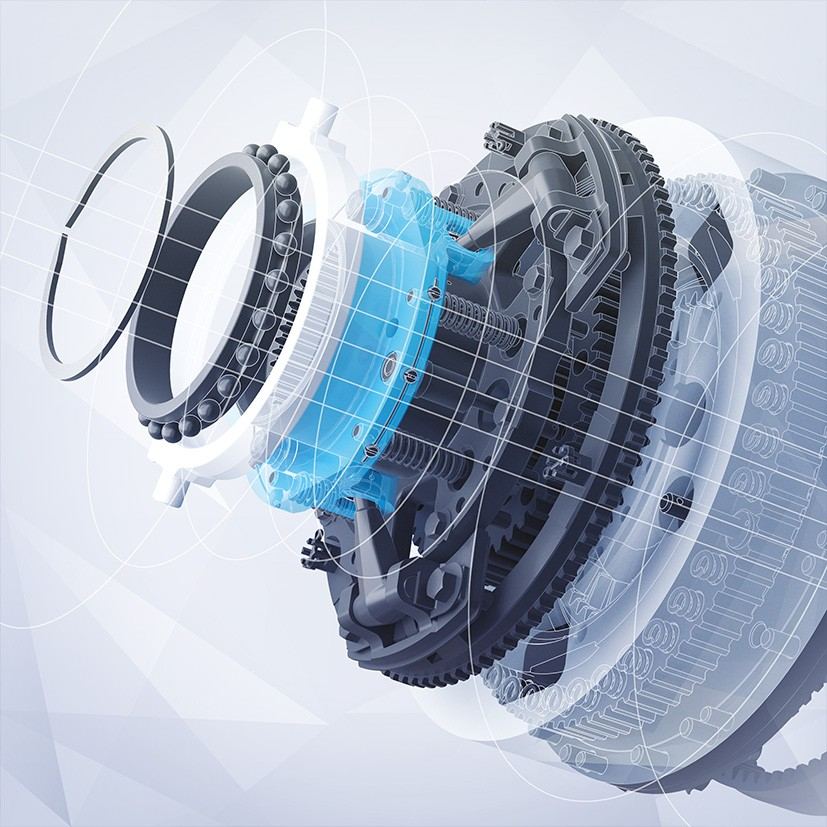

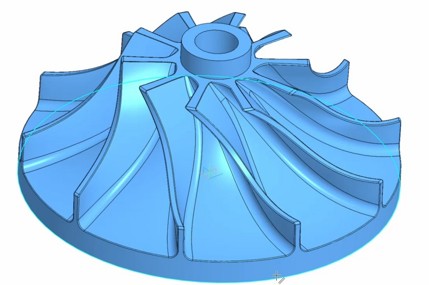

KOMPAS-3D creates three-dimensional associative models for individual parts and assembly units containing both original and standardized industrial elements — solid, surface, sheet-metal and object modeling under one roof.
Its defining strength is a proprietary geometric kernel and parametric technology developed by ASCON specialists — the engine that keeps every configuration associative and every variation instantaneous.
Starts by drafting 2D sketches, which you turn into 3D parts — fixing them with constraints, extruding by specified distances, revolving about their axis and so on. Refine parts with chamfers, fillets, cut-outs and stiffeners, then join multiple parts into complex assemblies using rules and 3D constraints.

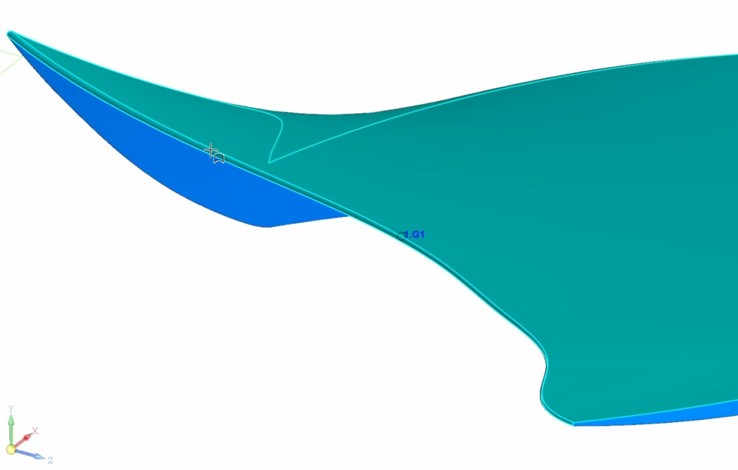

Begins with 2D and 3D profiles built from curves, spatial lines and points. Create surfaces by extruding, revolving and generating along paths, or by defining sections and grids of curves. Trim, split, extend and add cutouts — assign a thickness and material, and KOMPAS-3D turns the surface into a solid.

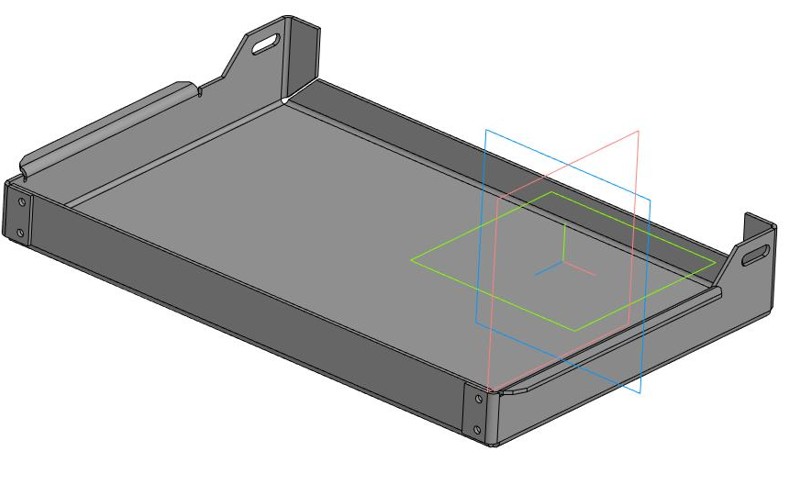

Designs sheet metal parts, instrument packages, electrical cabinets and brackets — practically anything produced by bending and stamping. When the design is complete, generate dimensioned flat patterns automatically for the shop floor.
Instead of drawing sketches, add pre-drawn objects directly to assemblies. Design rapidly using typical industry parts — pipes, gears, fasteners and metal shapes. Objects understand how to behave with other parts and store useful metadata about themselves.

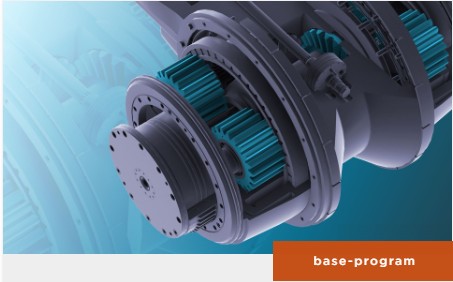

Top-down and bottom-up assemblies with mates, motion studies and interference checks — orchestrate thousands of components while every drawing and BOM stays associative.
Top-down and bottom-up methods, deep libraries of fasteners and materials — models, drawings and specifications stay in sync automatically.

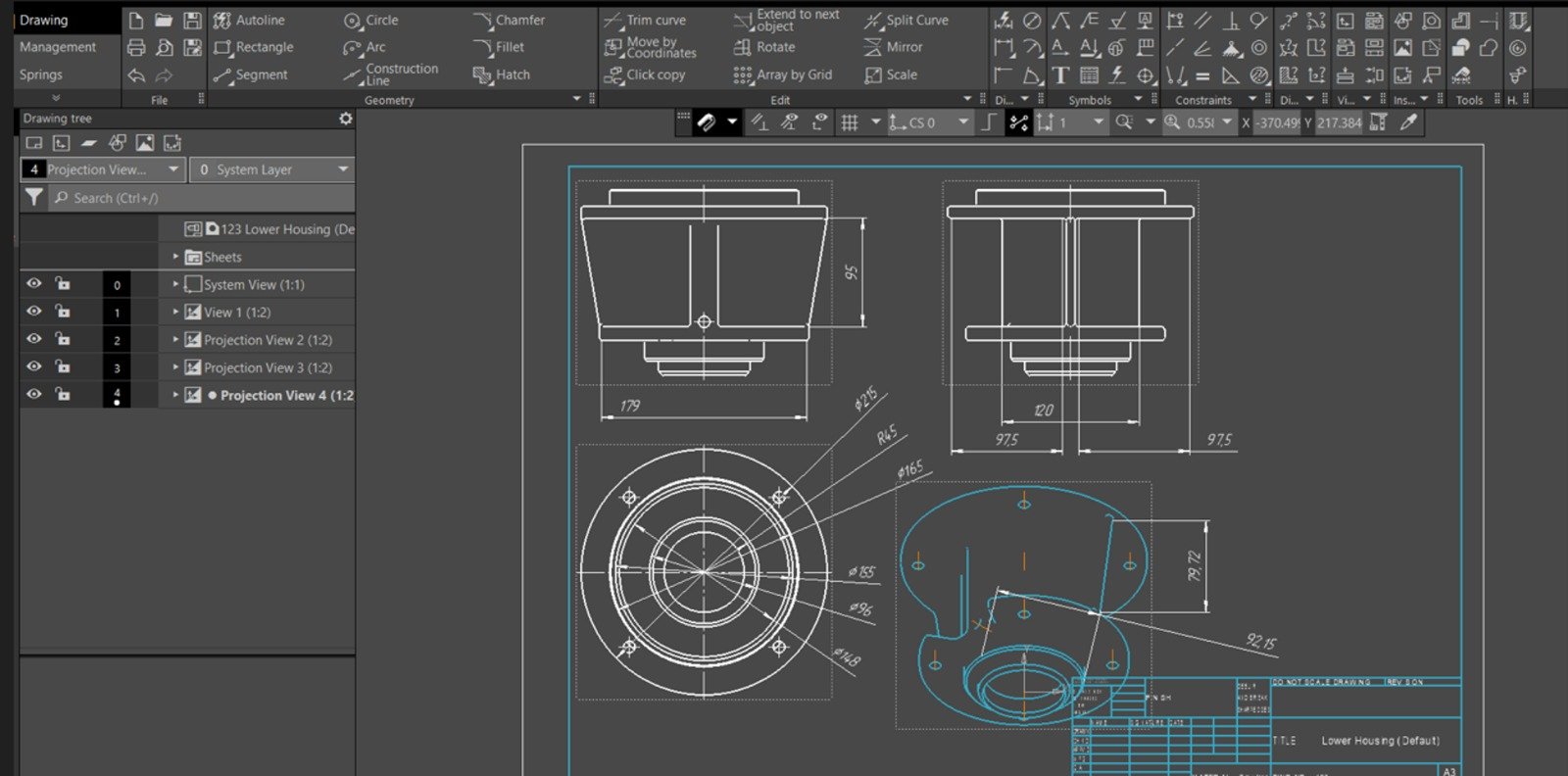

A full 2D drafting environment engineered inside the same platform — every projection view, dimension and annotation stays associative to the 3D master. Change the part, the drawing updates. Standards-compliant. Shop-floor ready.
Standard parts, piping, steelwork, wiring, springs, electronics — each module native to the platform.

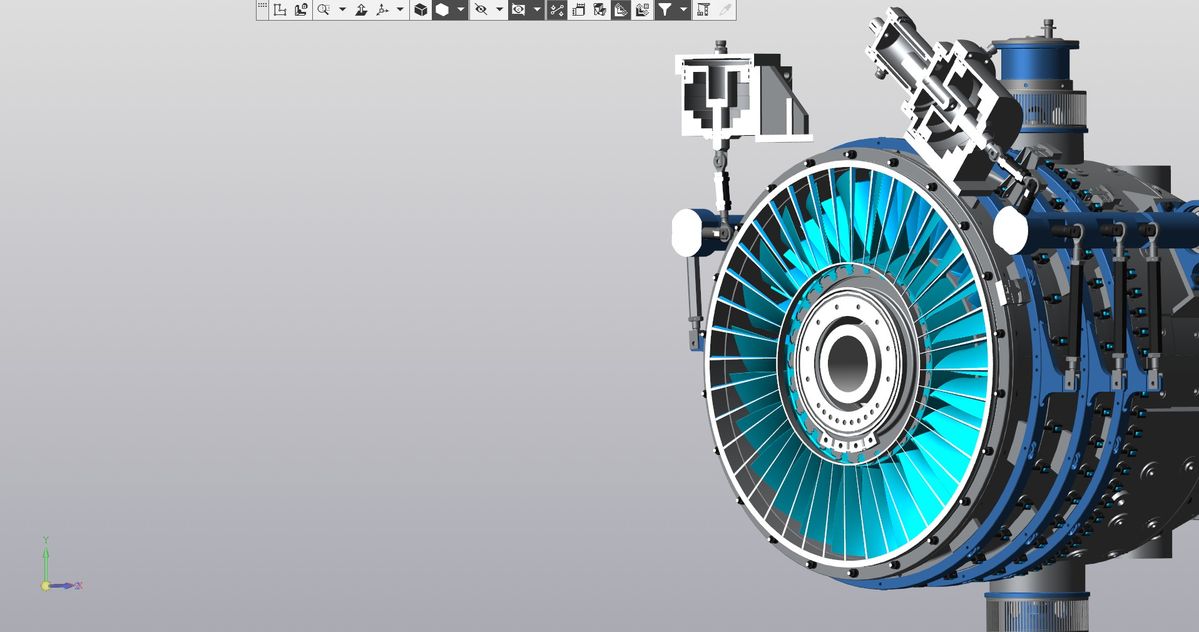

Free utility to view, measure and print drawings & model templates created in KOMPAS-3D.
Database of materials with physical & mechanical properties, applied directly to your 3D models.

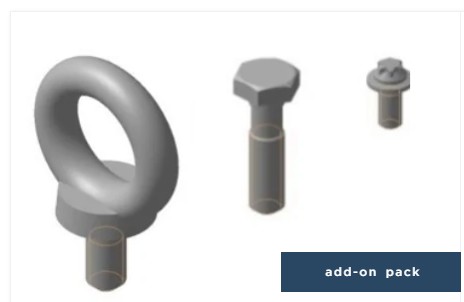

DIN & ISO standard parts as 3D models and 2D drawings — bolts, screws, bearings and more.

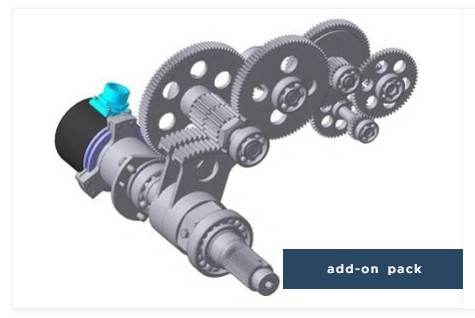

Automated construction of multistage shafts with grooves, holes, splines and keyways.

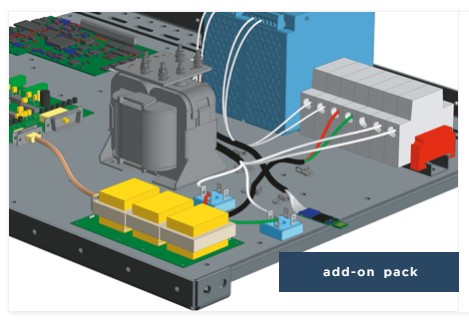

Model electrical cables and harnesses natively inside KOMPAS-3D assemblies.

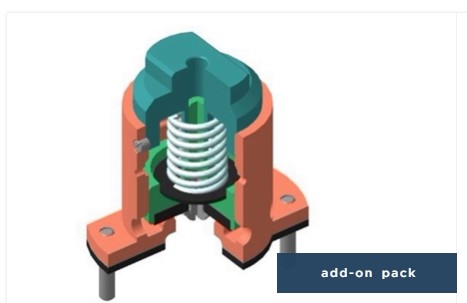

Design and verify compression, tension, torsion, Belleville and conical springs with auto-generated drawings.

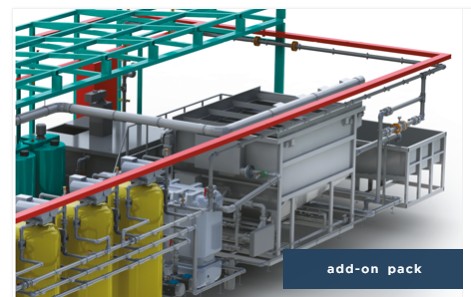

Automate pipeline routing for machine building and utility networks using standardized components.

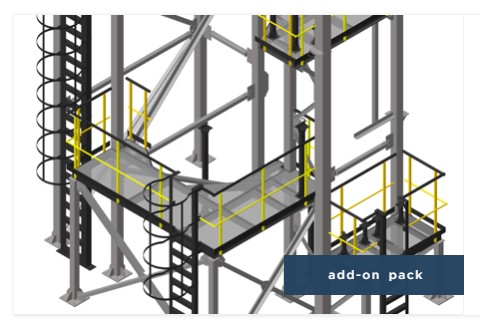

Frame construction from rolled profiles along trajectories — for machine building and steelwork.

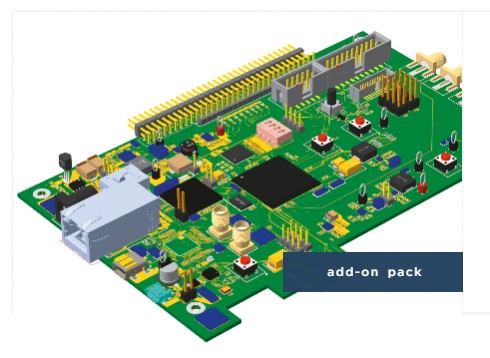

Import 3D PCB models via IDF from P-CAD, OrCAD and Altium Designer into KOMPAS-3D assemblies.
Strength, fluids and manufacturing — decisions in CAD stay validated all the way to the shop floor.

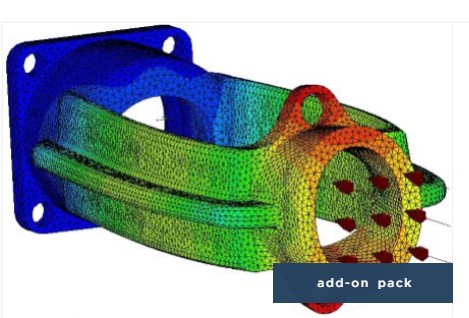

Finite-element strength analysis integrated into KOMPAS-3D. Validate parts against static, dynamic, thermal and buckling loads before a single prototype is machined.

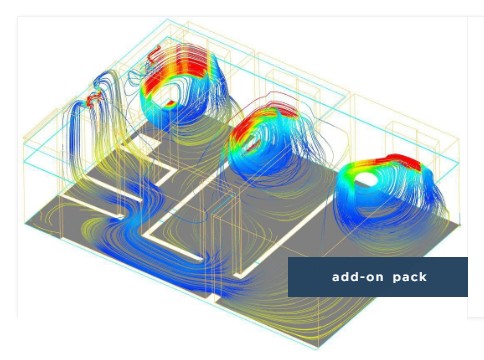

A designer-friendly aero-hydrodynamic simulator that evaluates the impact of geometry changes on device performance — right inside KOMPAS.

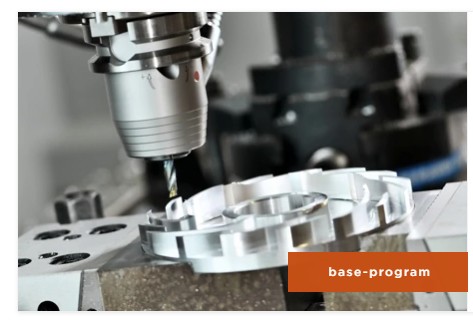

Generate control programs for every class of CNC — turning, milling, wire-cut, contour cutting and additive — with full virtual-machine simulation.

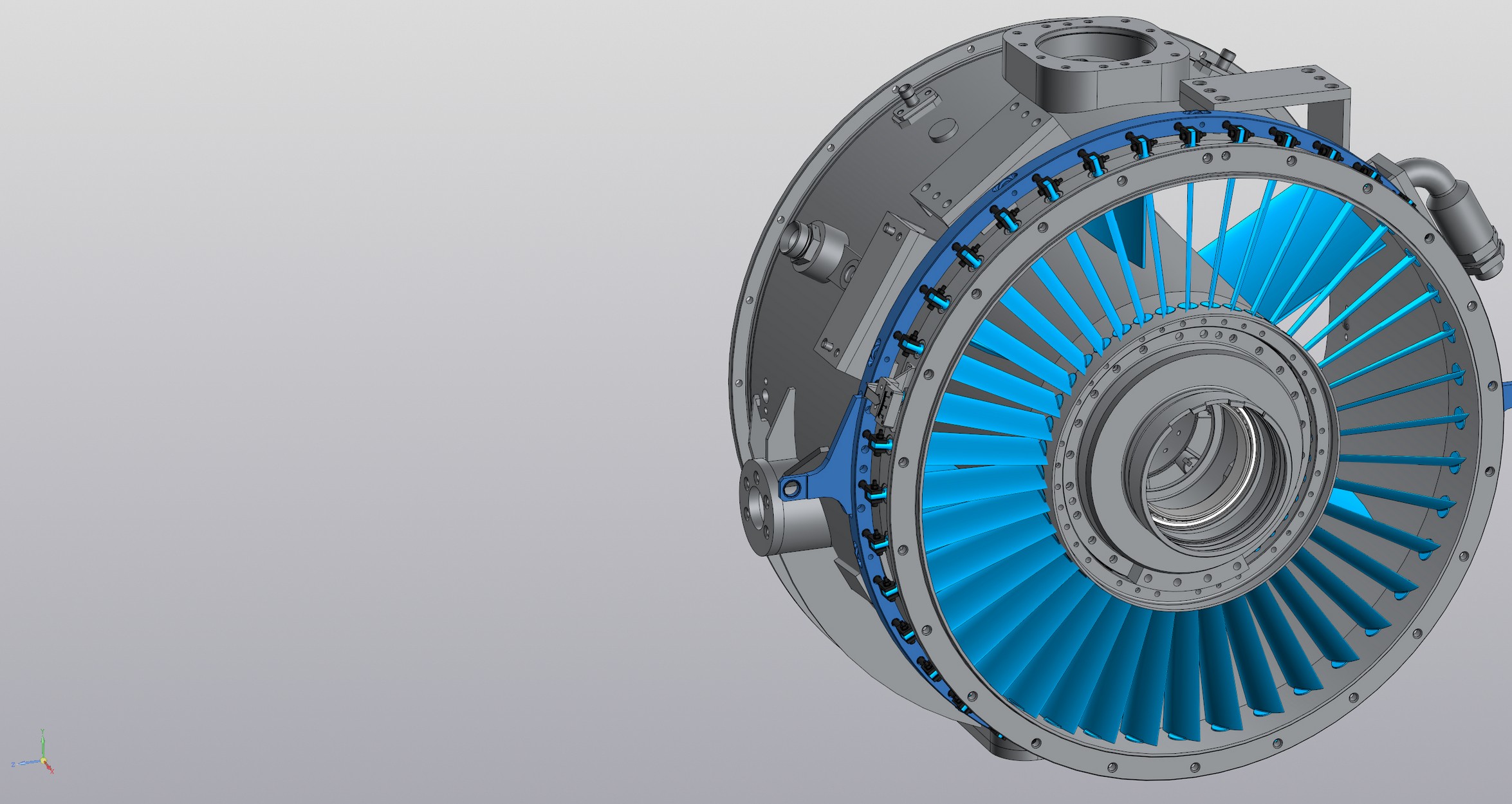

A selection of models produced inside the KOMPAS-3D ecosystem.
From heavy machinery to satellites, KOMPAS-3D and ENGINARIUM's engineering services power design and delivery across nine core industries.
Licensing, training, deployment and long-term engineering support — from ASCON's authorized reseller in South India.
